As residential solar systems, backup power solutions, and off-grid energy applications continue to expand, energy storage batteries are facing higher requirements for capacity, safety, durability, and environmental adaptability. A modern battery system is no longer judged only by how much energy it can store, but also by how efficiently it can operate under demanding conditions over many years.

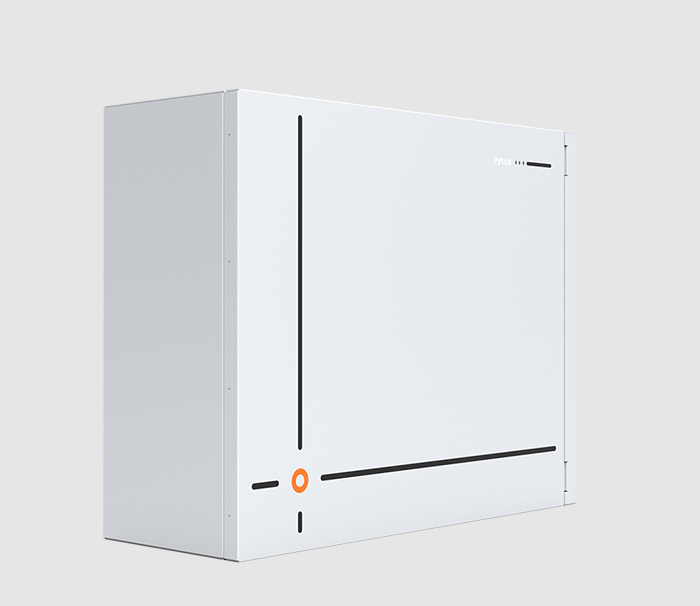

The Pytes V12 outdoor battery is designed to address these challenges with a combination of 11.78kWh energy capacity, 51.2V low-voltage architecture, 230Ah automotive-grade LiFePO4 cells, IP66 protection, and C4-M corrosion resistance. By integrating high-performance battery technology with a rugged outdoor design, the V12 provides a dependable energy storage solution for residential solar, backup power, and off-grid applications.
Energy capacity is one of the most important factors when selecting a battery storage system. The Pytes V12 features a nominal voltage of 51.2V and a 230Ah capacity, delivering a total energy storage capacity of 11.776kWh.
This capacity enables homeowners and system integrators to store more solar energy generated during the day and utilize it during nighttime, peak electricity periods, or grid outages.
Key electrical specifications include:
· Battery Type: LiFePO4 (Lithium Iron Phosphate)
· Nominal Voltage: 51.2V
· Nominal Capacity: 230Ah
· Rated Energy: 11.78kWh
· Recommended Charge Current: 100A
· Recommended Discharge Current: 120A
· Peak Discharge Current: 200A for 180 seconds
· Peak Output Capability: Up to 10.24kW
With a recommended discharge capability of approximately 6.14kW and short-term peak output reaching 10.24kW, the V12 can support higher-power household loads while maintaining stable performance.
For residential energy storage systems, this means fewer limitations when powering appliances, backup equipment, and essential electrical loads.
The performance of an energy storage system depends heavily on the quality of its battery cells. The Pytes V12 uses Tier 1 automotive-grade 230Ah LiFePO4 cells, providing excellent safety characteristics and long-term stability.
Compared with traditional battery configurations using numerous smaller cells, large-capacity battery cells help reduce internal connection points and simplify system architecture. This design improves reliability while reducing potential failure risks caused by complex internal structures.
LiFePO4 chemistry is widely recognized for its:
· High thermal stability;
· Strong safety performance;
· Low risk of thermal runaway;
· Long service life;
· Stable charging and discharging characteristics.
According to Pytes specifications, the V12 achieves up to 6,000 cycle life at 90% depth of discharge (DoD) under standard testing conditions, helping reduce replacement frequency and improve the total return on investment for energy storage projects.
Outdoor battery installation requires stronger protection compared with indoor energy storage systems. Exposure to rain, dust, humidity, and coastal environments can affect battery performance and service life if the enclosure design is insufficient.
The Pytes V12 features an IP66-rated enclosure, providing strong protection against dust ingress and water exposure. This makes it suitable for outdoor installations where environmental conditions are more challenging.
In addition, the battery adopts C4-M corrosion resistance, improving durability in environments with high humidity, coastal salt exposure, and industrial atmospheric conditions.
The combination of IP66 and C4-M protection allows the V12 to maintain reliable operation in:
· Residential outdoor installations;
· Coastal areas;
· High-humidity regions;
· Solar storage systems requiring external placement.
Compared with conventional indoor batteries, the V12 provides greater installation flexibility without requiring additional protective structures.
Temperature changes can significantly influence lithium battery charging performance. In cold environments, battery charging efficiency may decrease, affecting overall system availability.
The Pytes V12 integrates a built-in heating system to improve low-temperature performance. When the battery temperature drops below approximately 5°C, the heating function activates to maintain suitable operating conditions.
The V12 supports:
· Charging temperature range: 0°C to 55°C
· Discharging temperature range: -20°C to 55°C
This capability allows the battery to operate reliably across different climates, including colder regions where traditional battery systems may experience reduced performance.
Safety in energy storage systems requires more than high-quality cells. A complete battery management system (BMS) is essential for monitoring and protecting battery operation.
The Pytes V12 integrates multiple protection functions, including:
· Over-current protection;
· Over-voltage protection;
· Short-circuit protection;
· Temperature monitoring;
· Pre-charge protection;
· Emergency shutdown function.
The built-in pre-charge circuit helps reduce high current impact during system startup, improving compatibility with inverters and extending system component life.
For smart energy management, the V12 supports multiple communication methods:
· CAN communication;
· RS485 communication;
· WiFi monitoring;
· Dry Contact interface.
These communication options allow users and installers to monitor battery status, optimize system performance, and integrate the battery into intelligent energy management platforms.
Installation flexibility is another important consideration for modern storage solutions. The Pytes V12 supports both wall-mounted and floor-mounted installation methods, allowing it to adapt to different project requirements.
Main mechanical specifications:
· Dimensions: approximately 688.4 × 260 × 520mm
· Weight: approximately 98.4kg
Its compact structure allows installation in various locations, including:
· Residential garages;
· Utility rooms;
· Outdoor walls;
· Solar equipment areas;
· Small commercial energy storage sites.
The V12 can be paired with solar inverters to create complete energy storage systems for applications such as:
The battery stores excess solar energy during daylight hours and releases power when solar generation is unavailable, increasing solar self-consumption and reducing dependence on the grid.
During grid interruptions, the V12 can provide reliable backup electricity for essential household loads, including lighting, communication devices, and critical appliances.
For remote areas without stable grid access, the 11.78kWh capacity provides dependable energy availability for homes, farms, and small facilities.
Compared with conventional energy storage batteries, the Pytes V12 combines capacity, safety, and environmental adaptability into one integrated solution.
Specification | Pytes V12 |
Energy Capacity | 11.78kWh |
Battery Voltage | 51.2V |
Battery Chemistry | LiFePO4 |
Cell Type | Tier 1 Automotive-Grade 230Ah Cells |
Cycle Life | Up to 6,000 Cycles |
Protection Rating | IP66 |
Corrosion Resistance | C4-M |
Peak Discharge | 200A / 10.24kW |
Communication | CAN, RS485, WiFi, Dry Contact |
Installation | Wall-Mounted or Floor-Mounted |
These specifications demonstrate that the V12 is engineered not only for high energy storage capacity but also for long-term reliability in real-world environments.
As energy independence becomes increasingly important, storage batteries must deliver more than basic electricity storage. They need to provide consistent performance, strong safety protection, and long operational life.
With 11.78kWh capacity, 51.2V low-voltage design, 230Ah automotive-grade LiFePO4 cells, IP66 protection, C4-M corrosion resistance, and 6,000-cycle performance, the Pytes V12 offers a reliable solution for modern solar storage and backup power applications.
By combining advanced battery technology with a durable outdoor-ready structure, the Pytes V12 helps homeowners and energy system developers build safer, more efficient, and more resilient energy storage systems.
