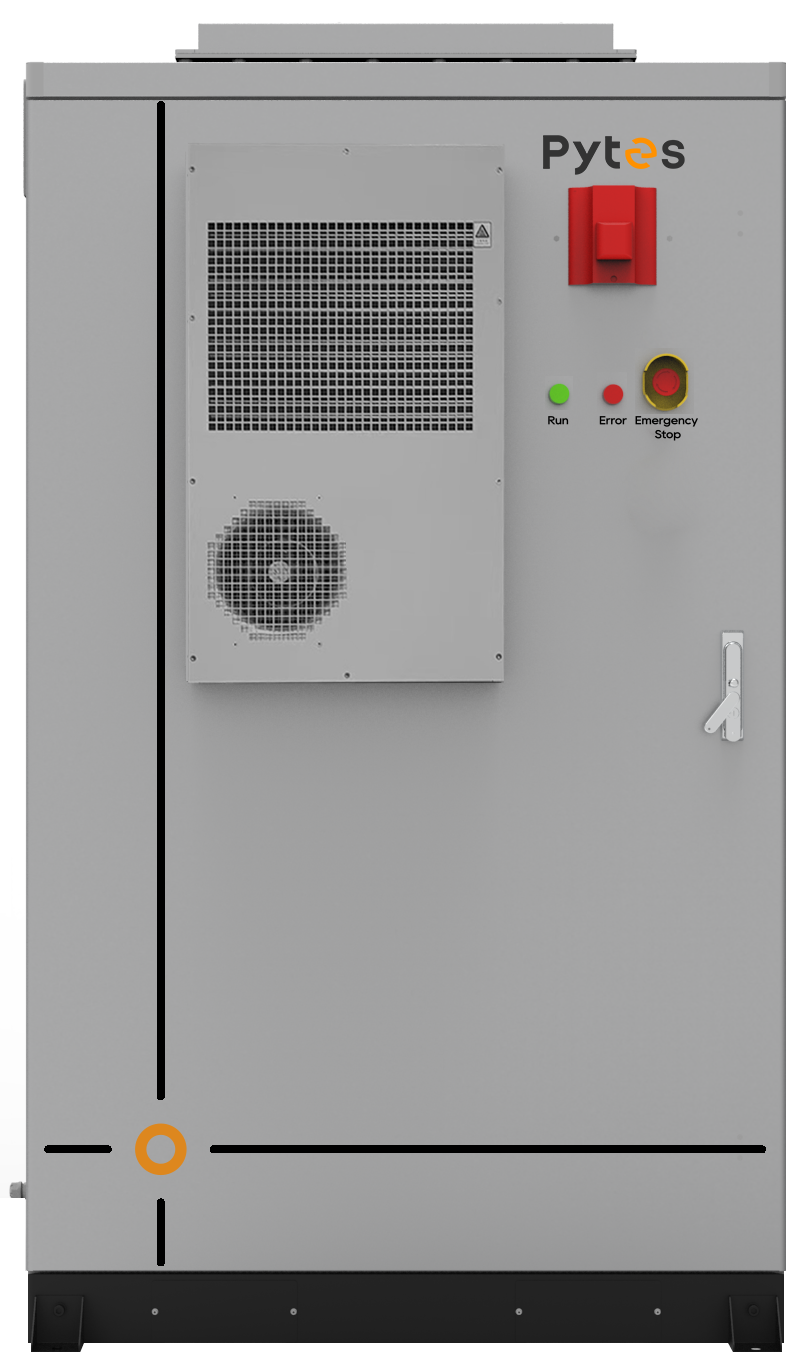

The HV48100 SE IP55 outdoor energy storage cabinet delivers unwavering performance and multi-level safety protection. Engineered to operate flawlessly from -20°C to 55°C (-4°F to 131°F), it provides a robust power solution for critical applications like hospitals, schools, agriculture, and commercial centers. With features for remote monitoring, control, and seamless parallel expansion, it ensures a stable, scalable, and intelligent power supply for your evolving needs.
Tier-1 Automotive-grade LFP Cells
Multi-level BMS Monitoring and Proetction
Multi-layer Active Fire Suppression
NFPA 68/69, UL 9540, UL 9540A, UL1973 Compliant
Air-cooling System
Integrated Heating Film
Built-in Module-level Fans
IP55 Rated Water & Dust Proof Cabinet
Modular by Design, Scalable on Demand:
Scale Seamlessly to MWh-level Capacity
Wide Voltage Operation Range
Universal Mounting Structure
Support Various Inverter Models
Remote Monitoring and Upgrading with Pytes Battery Cloud
Local Stock for Faster Delivery
Local Team Provides Comprehensive Services
| Battery Module | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Battery Chemistry | Lithium Iron Phosphate (LFP) | |||||||||||||
| Battery Module Energy | 5.12 kWh | |||||||||||||
| Battery Module Nominal Voltage | 51.2 V | |||||||||||||
| Battery Module Operating Voltage | Battery Module Operating Voltage | |||||||||||||
| Battery Module Nominal Capacity | 5.12 kWh | |||||||||||||
| Weight (lb / kg) | 99 / 45 | |||||||||||||
| System | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Battery Module Internal Configuration1 | 5S2P | 6S2P | 7S2P | 12S1P | 13S1P | 14S1P | 15S1P | |||
| Rated Energy | 51.20kWh | 61.44kWh | 71.68kWh | 61.44kWh | 66.56 kWh | 71.68 kWh | 76.80 kWh | |||
| Rated Power | 25.60 kW | 30.72 kW | 35.84 kW | 30.71 kW | 33.28 kW | 35.84 kW | 38.40 kW | |||
| Operating Voltage | 237.5 V ~ 288 V | 285 V ~ 345.6 V | 332.5 V ~ 403.2 V | 570 V ~ 691.2 V | 617.5 V ~ 748.8 V | 665 V ~ 806.4 V | 712.5 V ~ 864 V | |||
| Charge/Discharge Current | 50 A*2 | 50 A | ||||||||
| General | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions (WxDxH) | 43 × 47 × 79 inch (1100 × 1193 × 2015 mm) | |||||||||
| Approximate weight (lb / kg) | 2029 / 920 | 2234 / 1013 | 2439 / 1106 | 2203 / 999 | 2306 / 1046 | 2408 / 1092 | 2511 / 1139 | |||
| Ingress Protection Rating | IP 55 | |||||||||
| Cycle Life 2 | 6000 cycles | |||||||||
| Warranty 3 | Battery system: 3 Years 4 | |||||||||
| Internal Heating Film | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Input Voltage | 110Vac @ 60 Hz | |||||||||
| Rated Power | 176 W | |||||||||
| Control Temperature | On: ≤50 °F (10 °C) | |||||||||
| Environmental | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Operating Tempeature | -4 °F ~ 131 °F (-20 °C ~ 55 °C) | |||||||||
| Operating Altitude | ≤ 9843 ft (3000 m) | |||||||||
| Relative Humidity | 5% ~ 80 % non-condensing | |||||||||
| Fire Suppression System | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Level 1: Detection & Ventilation | Hazardous gas detection activates ventilation system | |||||||||
| Level 2: Aerosol Suppression | Heat and smoke detection activates aerosol fire suppression system | |||||||||
| Level 3: Pressure Relief | The explosion relief valve opens automatically if internal pressure exceeds safe limits | |||||||||
| Level 4: Fire Hose Connection Port | Equipped with a fire hose connection port for firefighter hose attachment | |||||||||
| HVAC | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Cooling Capacity | 2300 W (L35) | |||||||||||||
| Max. Heating Capacity | 1050 W | |||||||||||||
| Ingress Protection Rating | IP55 | |||||||||||||
| Compliance | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Certifications | UL 9540 Ed.3 (2023), UL 9540A, UL 1973, UN 38.3 | |||||||||||||
| Listings | CEC, SGIP, OGPe | |||||||||||||
1. Flexible Configuration: Number of connectable BMUs per BCU ranges from 5 to 15. Voltage Range: 47.5 V x (1 ~ 15) ~ 57.6 V x (1 ~ 15). The HV48100 SE cabinet has 16 layers. The recommended maximum configuration per HV48100 SE cabinet is 15S1P / 7S2P.
2. Operating conditions: 77°F (25°C), 0.5C @ 90% DOD, ret @70% (EOL).
3. Warranty: 3 years for the whole battery system, 10 years or 6000 cycles for the battery (whichever comes first).
4. Optional 2 year warranty extension available for purchase.
