As commercial and industrial energy storage projects continue to expand, buyers are paying less attention to marketing claims and more attention to measurable performance indicators. Capacity, safety architecture, environmental adaptability, scalability, and certification compliance have become the key criteria for evaluating energy storage systems.

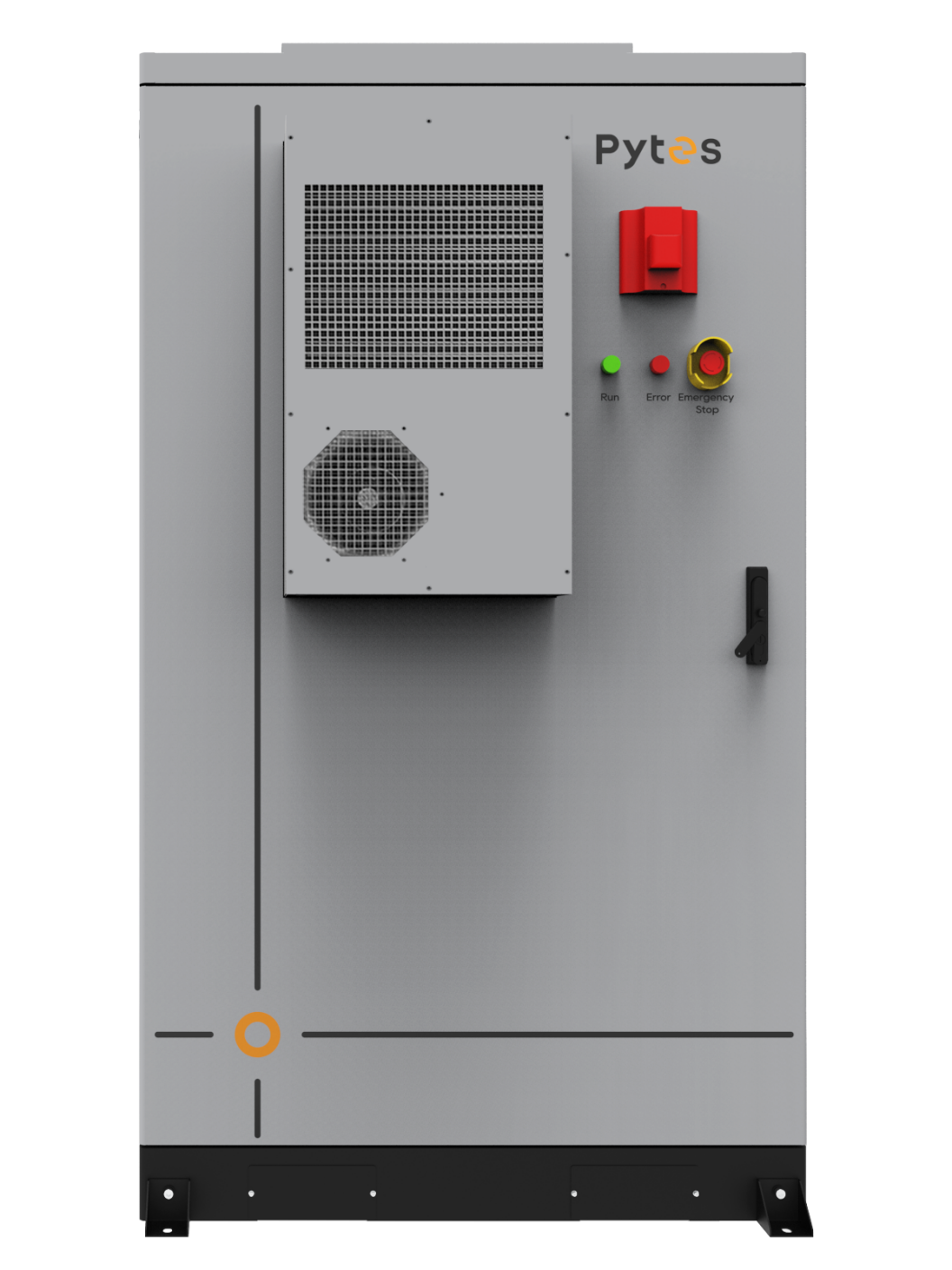

The Pytes HV48100 SE is designed around these practical requirements. Rather than being a standard battery cabinet with basic protection, it integrates high-voltage architecture, multi-layer fire protection, intelligent thermal management, and modular scalability into a single outdoor-ready platform. The result is a solution capable of supporting applications ranging from schools and hospitals to commercial facilities, agricultural operations, and distributed energy projects.
One of the most significant advantages of the HV48100 SE is its high energy density at the cabinet level.
A fully configured system delivers:
· Up to 76.8kWh rated energy
· Up to 38.4kW rated power
· 50A continuous current output
These specifications allow installers to achieve substantial storage capacity using fewer cabinets compared with conventional low-voltage architectures. Fewer cabinets typically mean reduced installation space, simplified wiring, and lower balance-of-system costs.
For commercial facilities where installation footprint is limited, achieving nearly 77kWh within a single outdoor cabinet can significantly improve project economics.
Many energy storage systems perform well in controlled indoor environments but face challenges when deployed outdoors.
The HV48100 SE addresses this issue through an integrated environmental management design.
Key environmental specifications include:
· Operating temperature range: -20°C to 60°C
· IP55 enclosure protection
· Integrated heating film for cold climates
· Built-in cooling fans within battery modules
· Cabinet-level air cooling system
This configuration enables stable operation across diverse climates, from cold winter conditions to high-temperature summer environments. Unlike systems that rely solely on passive cooling, the HV48100 SE actively manages temperature differences within the cabinet, helping improve battery consistency and long-term performance.
For projects located in agricultural facilities, schools, hospitals, and outdoor commercial sites, environmental adaptability can be just as important as battery capacity.
Safety has become one of the most important topics in commercial energy storage.
The HV48100 SE incorporates a multi-layer safety architecture that goes beyond traditional battery management systems.
Its cabinet-level protection includes:
· Heat, smoke, and gas detection
· Automated ventilation and exhaust systems
· Aerosol fire suppression technology
· Pressure relief mechanisms
· External fire hose connection ports
Combined with Tier-1 automotive-grade LFP cells and Pytes' self-developed battery management system, these features create multiple layers of protection designed to detect, isolate, and mitigate thermal events before they escalate.
This approach is particularly important for installations serving critical infrastructure where operational continuity and safety compliance are essential.
Battery lifespan remains one of the most important factors affecting total project cost.
The HV48100 SE utilizes Lithium Iron Phosphate (LFP) chemistry and is rated for more than 6,000 cycles under specified operating conditions. LFP technology is widely recognized for its thermal stability, long service life, and suitability for stationary energy storage applications.
For commercial users performing daily charge and discharge cycles, this cycle life can translate into many years of reliable operation while helping reduce replacement frequency and lifecycle costs.
Energy requirements rarely remain static.
A system that meets current demand may require expansion as facilities grow, renewable generation increases, or energy management strategies evolve.
The HV48100 SE addresses this challenge through modular scalability.
The platform supports:
· MWh-scale expansion capability
· Compatibility with major inverter brands
This flexibility allows projects to begin with a single cabinet and scale capacity as needed without redesigning the entire energy storage infrastructure.
For commercial and industrial users, scalability can significantly reduce future upgrade costs while protecting the original investment.
As energy storage regulations become increasingly stringent, certification compliance is becoming a key purchasing factor.
The HV48100 SE is designed to meet major international standards, including:
· UL9540
· UL9540A
· UL1973
· IEC62619
· CE
· UN38.3
Additionally, the system is designed around NFPA 68, NFPA 69, and NFPA 855 requirements for energy storage safety. These certifications help simplify project approval processes and support deployment in regulated commercial environments.
The energy storage market is shifting toward systems that combine high capacity, safety, flexibility, and simplified deployment. Businesses are no longer looking for batteries alone; they are looking for complete energy storage solutions capable of supporting long-term operational goals.
Pytes Energy has built its reputation around this philosophy. Through products such as the HV48100 SE, the company provides energy storage solutions designed for real-world deployment rather than laboratory specifications. Its portfolio of low-voltage server rack batteries, modular stackable systems, and high-voltage solutions enables customers to build energy infrastructures that are scalable, reliable, and easy to manage.
The Pytes HV48100 SE stands out not because of a single feature, but because of how its specifications work together. A 76.8kWh cabinet capacity, 6000+ cycle life, IP55 outdoor protection, -20°C to 60°C operating range, and five-layer fire suppression system create a platform engineered for demanding commercial environments.
For organizations seeking a future-ready energy storage solution that balances performance, safety, and scalability, the HV48100 SE demonstrates how modern battery systems are evolving beyond simple energy storage into comprehensive energy management infrastructure.
