The increasing deployment of residential and small commercial solar systems has created a clear demand for energy storage solutions that can operate reliably in real outdoor conditions, not just controlled indoor environments. Heat, humidity, rain exposure, and installation space limitations are now standard design constraints in many global markets.

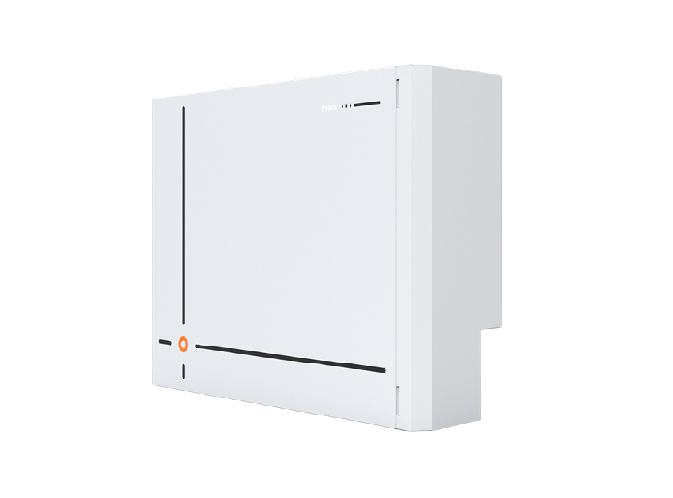

The Pytes V10α is developed specifically for these requirements. It is a 51.2V low-voltage LFP battery system with 9.98kWh capacity, engineered for wall-mounted or floor-mounted outdoor deployment. With IP66 protection, C4-M corrosion resistance, and up to 8000 cycle life, it is designed to deliver stable long-term energy storage for solar self-consumption and backup power applications.
The V10α is built on a 51.2V lithium iron phosphate (LFP) architecture, optimized for long cycle life and thermal stability in daily cycling applications.
Key electrical parameters include:
· Nominal voltage: 51.2V
· Capacity: 9.98kWh
· Recommended charge/discharge current: 120A (6.14kW)
· Peak discharge current: 200A (10.24kW, 180s)
· Cycle life: up to 8000 cycles
The 120A continuous discharge capability allows the system to support typical household loads, including HVAC systems, refrigerators, and high-power appliances, while the 10.24kW peak output ensures stable response during short surge demands.
This configuration makes the V10α suitable not only for backup scenarios but also for daily energy shifting in solar-powered homes.
Unlike traditional indoor-only battery systems, the V10α is designed for direct outdoor installation.
Its enclosure provides:
· IP66 protection against dust and water jets
· C4-M corrosion resistance for coastal and humid environments
This allows deployment in a wide range of conditions, including rooftops, outdoor utility walls, and semi-industrial environments where environmental exposure is unavoidable.
For many installations, this eliminates the need for additional protective cabinets, reducing overall system complexity.
The system supports a wide operating temperature range:
· Charging: 0°C to 55°C
· Discharging: -20°C to 55°C
This design maintains battery performance in low-temperature environments and prevents lithium plating risks during cold charging cycles.
Safety design is centered on multiple redundant protection mechanisms:
· Automotive-grade 230Ah LFP cells
· Integrated aerosol fire suppression system
· ESS emergency shutdown function
· Advanced BMS protection system
· DC breaker and pre-charge circuit
These layers ensure controlled response under abnormal electrical or thermal conditions, supporting stable operation in unattended energy storage environments.
The V10α supports both wall-mounted and floor-mounted installation, with a compact structural design:
· Dimensions: 640 × 230 × 520 mm
· Weight: 100 kg
From a system perspective, it integrates easily with mainstream inverter platforms through:
· RS485
· CAN
· WiFi
· Dry contact
This enables closed-loop energy management, including charge/discharge optimization, solar prioritization, and backup power coordination. Remote monitoring and firmware upgrades further support long-term system maintenance and optimization.
One of the key advantages of the V10α is its modular expansion capability.
A single system can be expanded:
· Up to 16 units in parallel
· Total capacity up to 160kWh
· No external hub required
This allows system designers to scale energy capacity gradually, from residential setups to small commercial energy storage systems, without changing the core architecture.
In photovoltaic applications, the V10α functions as a central energy buffer that improves self-consumption efficiency and grid independence.
Typical use cases include:
· Daytime solar storage and nighttime discharge
· Peak shaving in residential electricity tariffs
· Backup power during grid outages
· Hybrid solar-grid energy optimization
Its 9.98kWh capacity provides a practical balance between daily household energy consumption and solar generation variability.
The Pytes V10α 51.2V 9.98kWh outdoor battery system is designed for real-world energy storage scenarios where environmental durability, electrical performance, and system scalability must work together.
With IP66 protection, up to 8000-cycle LFP chemistry and expandable 160kWh architecture, it delivers a practical solution for modern residential and light commercial solar energy systems.
It reflects the ongoing shift in the energy storage industry toward outdoor-ready, modular, and highly integrated battery systems built for long-term solar energy independence.
