As residential solar adoption continues to grow, homeowners are looking for battery storage solutions that can provide reliable backup power, maximize solar utilization, and maintain stable performance over long operating periods. A good home battery needs more than large capacity; it must also offer safe battery chemistry, strong output capability, long cycle life, and flexible installation options.

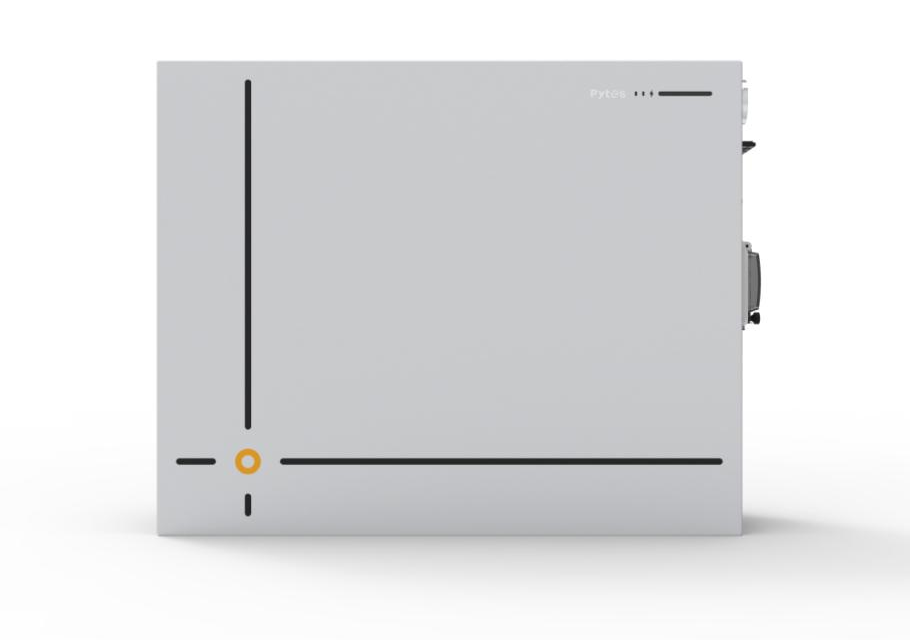

The Pytes V12 is designed to meet these requirements with a 51.2V lithium iron phosphate (LFP) battery architecture, 230Ah capacity, 11.78kWh nominal energy. With an 6000-cycle lifespan, 200A peak discharge capability, and intelligent battery management system (BMS), Pytes V12 provides a reliable energy storage solution for solar backup, self-consumption, and residential energy management.
When evaluating whether a home battery is suitable for long-term use, technical parameters provide the clearest reference. Pytes V12 integrates a high-capacity battery design with the following specifications:
· Battery Chemistry: Lithium Iron Phosphate (LiFePO4/LFP)
· Nominal Voltage: 51.2V
· Nominal Capacity: 230Ah
· Nominal Energy: 11.78kWh
· Recommended Charge/Discharge Current: 100A
· Rated Output Power: 5.12kW
· Peak Discharge Current: 200 A (10.24 kW) @ 180 s
· Cycle Life: 6000 cycles
· Warranty: 10 years
The combination of nearly 12kWh energy capacity and more than 10kWh usable energy allows a single Pytes V12 battery to support daily household electricity consumption while reducing dependence on grid power.
Battery chemistry directly affects safety, lifespan, and maintenance costs. Pytes V12 uses LiFePO4 technology, which has become a preferred choice for residential energy storage due to its excellent thermal stability and long service life.
Compared with other lithium battery technologies, LFP batteries provide better cycle durability and safer operation characteristics. For households that charge and discharge batteries every day, a long cycle life is especially important because it determines the battery’s long-term economic value.
Pytes V12 supports up to 6000 cycles, meaning the battery can handle years of daily charging and discharging while maintaining reliable energy output. This makes it suitable for solar energy storage applications where frequent cycling is required.
One of the main reasons homeowners install battery storage is to store excess solar energy generated during the day and use it when solar production decreases.
With 11.78kWh nominal capacity, Pytes V12 can store enough electricity for many common residential applications, including:
· Evening household electricity usage
· Lighting systems
· Refrigerators and essential appliances
· Home office equipment
· Emergency backup loads
Compared with smaller battery systems, the larger capacity reduces the need for multiple battery units, simplifying installation and improving system efficiency.
A home battery must not only store energy but also deliver sufficient power when household demand increases. Pytes V12 supports 100A recommended charge and discharge current, providing approximately 5.12kW continuous output power.
For short-duration high-power requirements, the battery can deliver Peak Discharge Current: 200 A (10.24 kW) @ 180 s, allowing it to handle temporary load increases caused by appliance startup or sudden power demand.
This capability makes Pytes V12 suitable for residential backup scenarios where stable power delivery is essential.
Residential battery installation locations vary depending on home design. Pytes V12 features an IP66-rated enclosure, providing protection against dust and water exposure and supporting more flexible installation possibilities.
The battery supports wall-mounted and ground-mounted installation, allowing installers to adapt the system according to available space.
Its operating temperature range also supports different environmental conditions:
· Charging temperature: 0°C to 55°C
· Discharging temperature: -20°C to 55°C
This flexibility makes Pytes V12 suitable for garages, utility rooms, and other residential energy storage areas.
A modern energy storage system requires intelligent monitoring and communication capabilities. Pytes V12 integrates an advanced BMS that continuously monitors important operating data, including voltage, current, temperature, and battery status.
The battery supports multiple communication interfaces, including:
· RS485
· CAN
· WiFi
· Dry Contact
These functions improve compatibility with different solar inverters and energy management systems, helping users monitor battery performance and optimize energy usage.
For residential solar energy storage, Pytes V12 delivers a strong combination of capacity, durability, and intelligent management. Its 51.2V platform, 11.78kWh energy capacity, 10.24kWh usable energy, 6000-cycle lifespan, and 5.12kW output capability demonstrate its ability to support modern household energy demands.
By using LiFePO4 technology, advanced BMS protection, and a high-capacity design, Pytes V12 provides homeowners with a reliable solution for solar storage, backup power, and long-term energy management.
