V5°

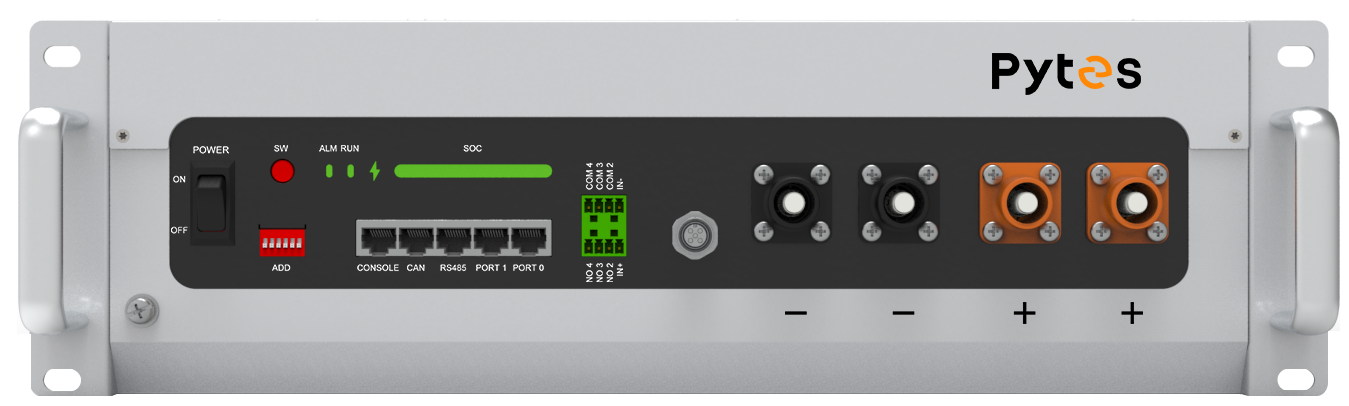

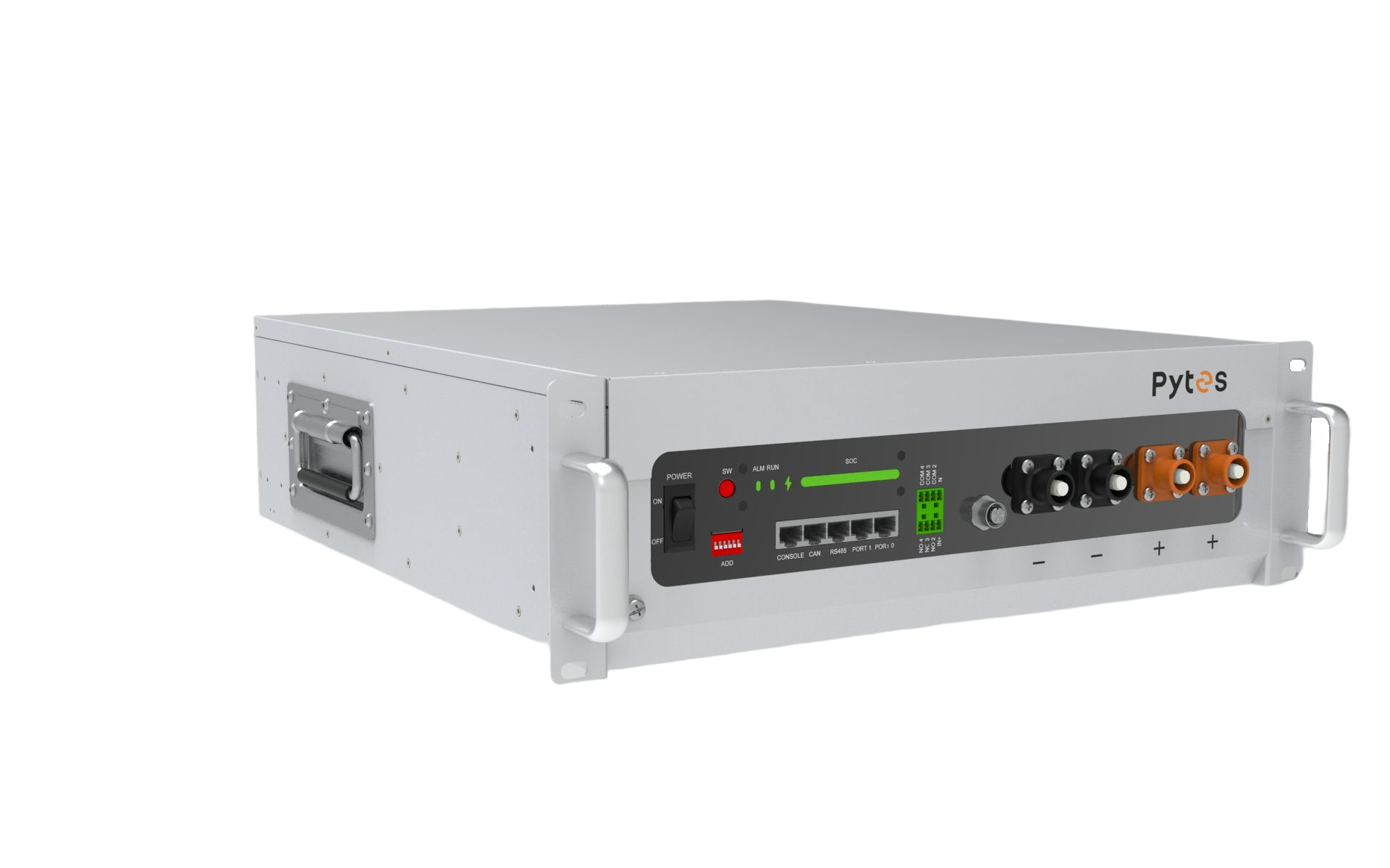

The new LFP battery for home energy storage system.
It helps to save your money on electric bill when use during peak, and make you feel confident facing outage, with electricity stored either from solar panels or grid.
The new LFP battery for home energy storage system.
It helps to save your money on electric bill when use during peak, and make you feel confident facing outage, with electricity stored either from solar panels or grid.
Maximum 100A charging/discharging (2 cycles)
75A continuous charging/discharging
Auto start heating in cold environments to ensure normal use and battery life
It reduces the space occupation and weight of the wiring system, also eliminates the wiring errors and improves the safety and reliability
A data acquisition stick is optional, enabling remote firmware upgrades
Expandable up to 573kWh (with a hub)
Max support 16 units parallel connection
Compatible with most inverter brands on the market
UL9540, UL1973, UL9540A, CEC, SGIP, UN38.3, IEC62619, CE
OEM Co-Listing available
≥6000 cycles @90%DOD, ret@80%, 25℃
>95% Round-trip efficiency
10 years warranty, Up to 20 years design life
Product Liability Insurance for North and Latin America
| Battery Model | V5° |
|---|---|
| Chemistry | LFP |
| Nominal Voltage | 51.2V |
| Voltage Range | 44.8V-57.6V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Unit Dimension | L483mm x W530mm x H140mm (3.2U) |
| Standard Charge/Discharge | 75A |
| Maximum Continuous Charge/Discharge | 100A |
| Peak Charge/Discharge | 150A(15s) |
| Round-Trip Efficiency | ≥95% |
| Communication Protocol | CAN/RS485/RS232 |
| Cycle Life | ≥6000cycles |
| Calendar Life | ≥10years |
| Operating Temperature | 14°F ~ 131°F |
| Connect style | Parallel |
| Heating system | 46.4~50°F/h |
