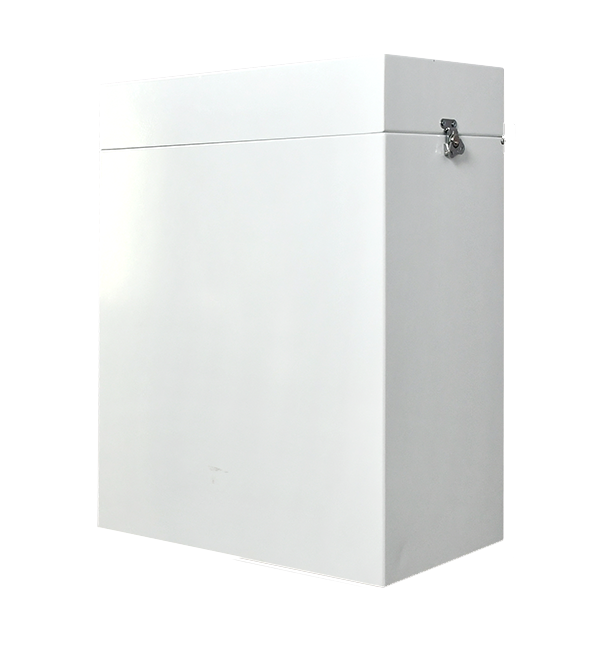

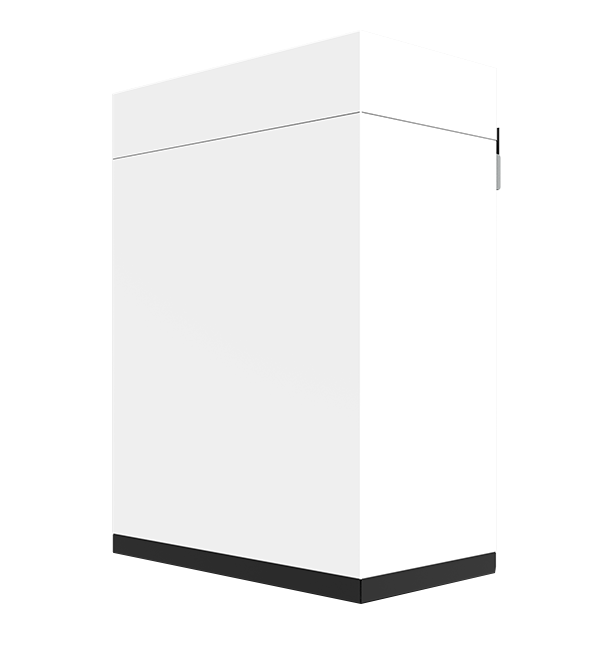

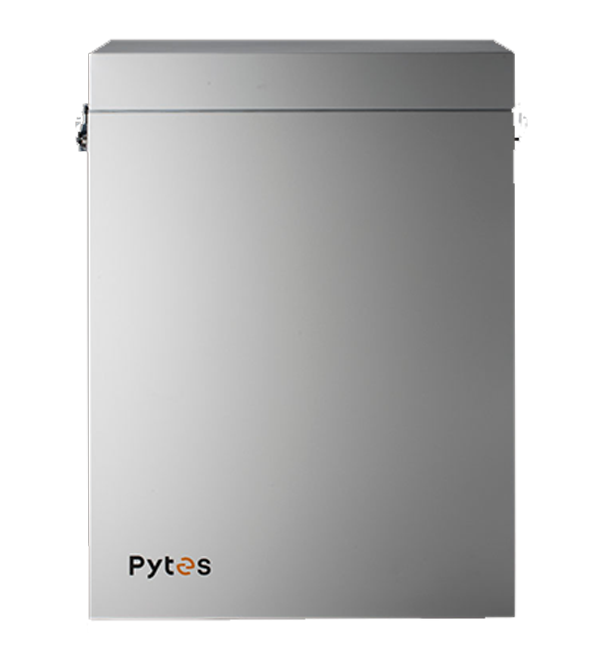

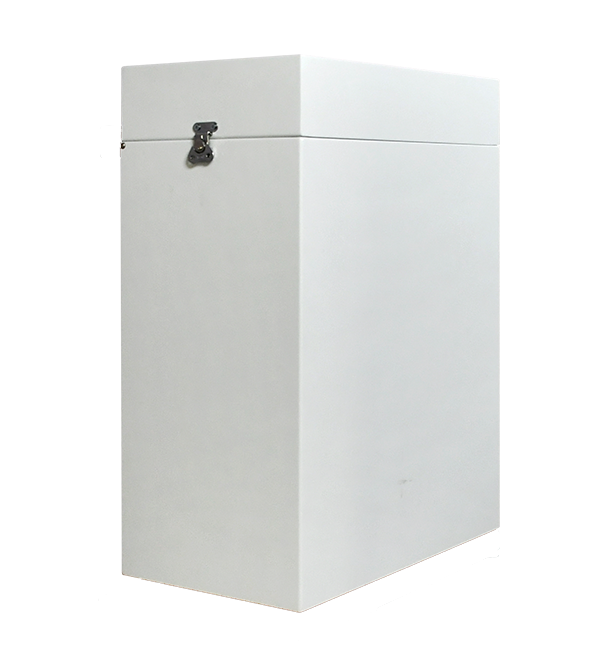

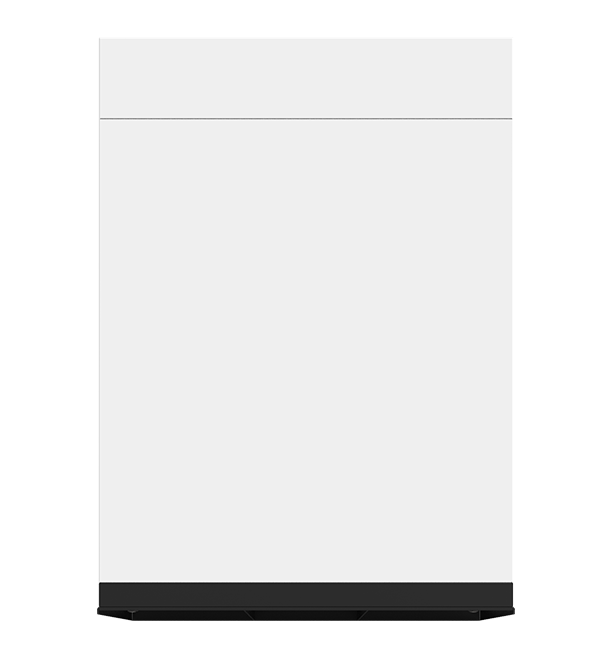

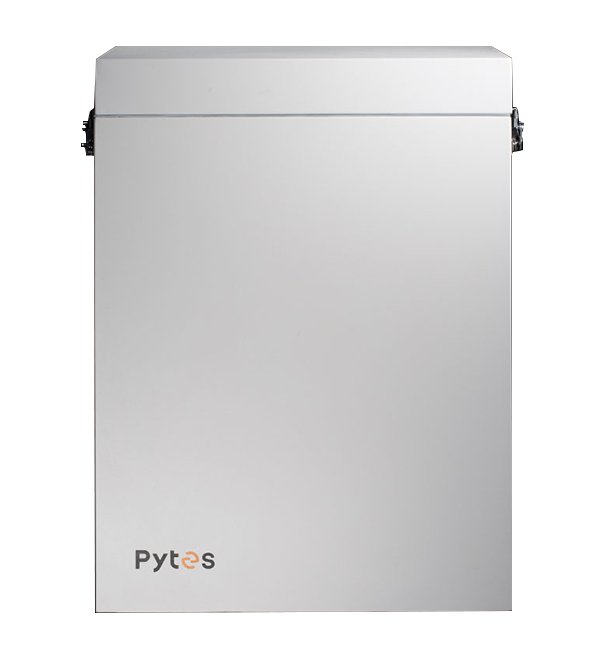

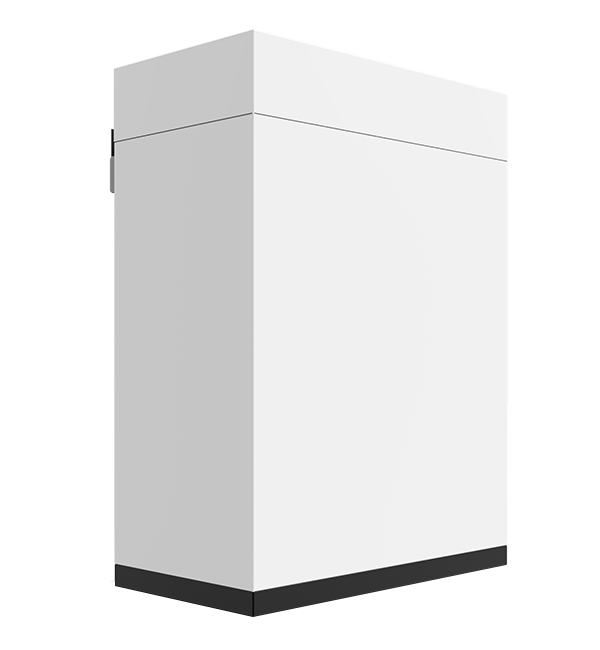

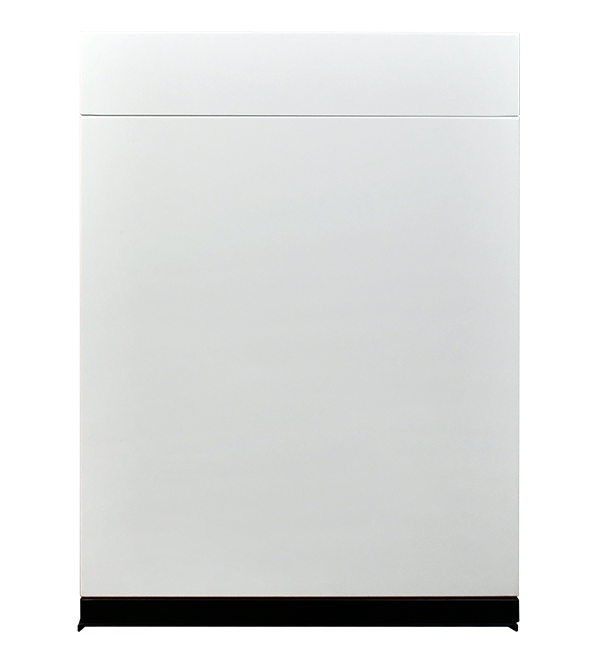

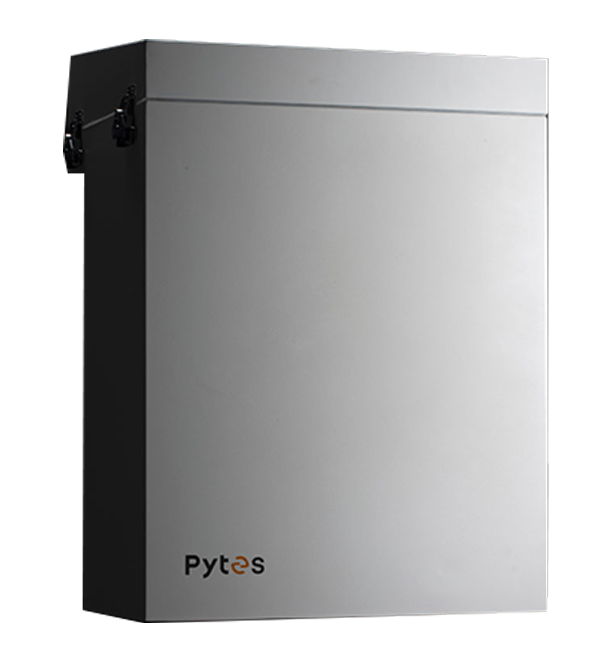

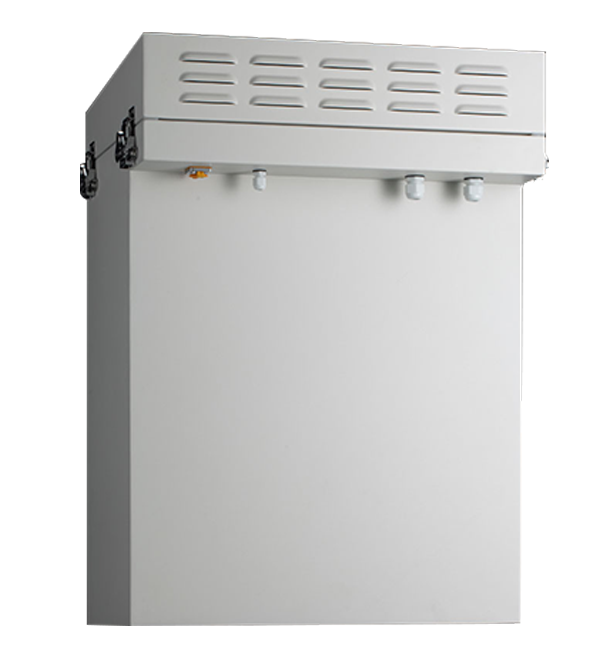

IP64 rated, R-Box-IP64 is flexible for both indoor and outdoor installation.

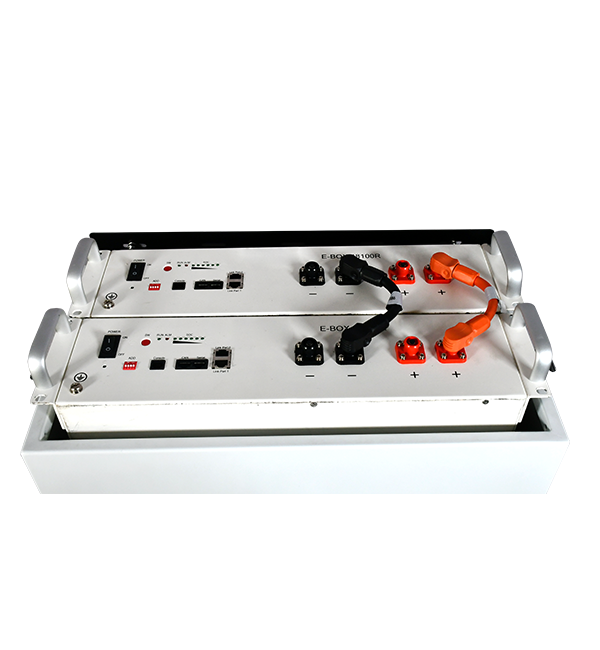

Compatible with PYTES E-Box-48100R, R-Box-IP64 provides up to 10kWh capacity. It will help you save money on electricity bills and make you confident facing outage.

Total capacity10.24kWh
Usable capacity9.22kWh
ChemistryLithium iron phosphate (LFP)
Nominal voltage51.2V
Max. charge/discharge current100A
CommunicationCAN, RS485
CertificateUL1973, CE, UN38.3
Operating TemperatureCharge:32~113°F
Altitude<6562ft (2000m)
Mechanical DesignParameter
Dimensions (L*W*H)12.2" x 20.9" x 29" (33.7" H w/ holder)
Weight264 lbs

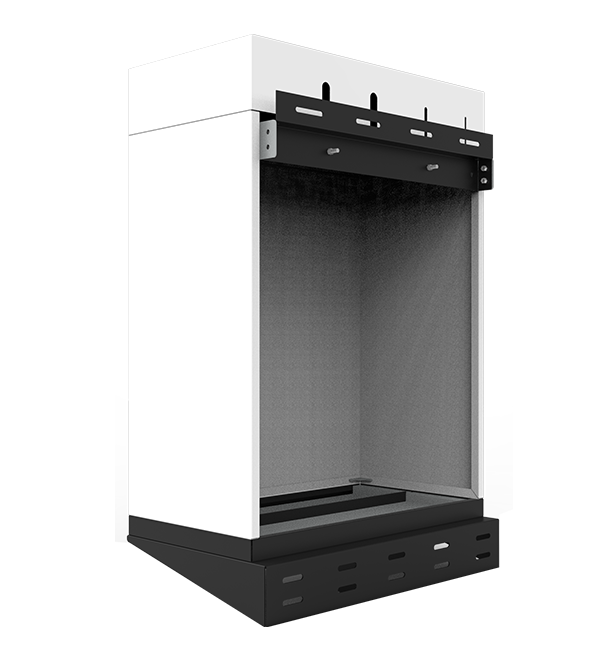

MountWall / Floor mount
Enclosure ratingR-BOX-IP64
Enclosure materialCool-rolled steel
CoolingNatural convection
Warranty6000 cycles or 10 years
  • E-Box-48100R
  • 48100R battery with Sol-Ark inverter
  • 48100R battery with Growatt inverter
  • 48100R battery with Luxpower inverter
  • 48100R battery with Magarevo inverter
  • 48100R battery with MPP Solar
  • 48100R battery with Victron inverter
  • 48100R battery with SRNE inverter
  • 48100R battery with Must inverter
