Compact and easy installation, specially desiged for limited installation space.
Expand the capacity of your backup power up to 30.72kWh max, as easy as stack a battery on one the other.
DC Breaker & Fuse Integrated

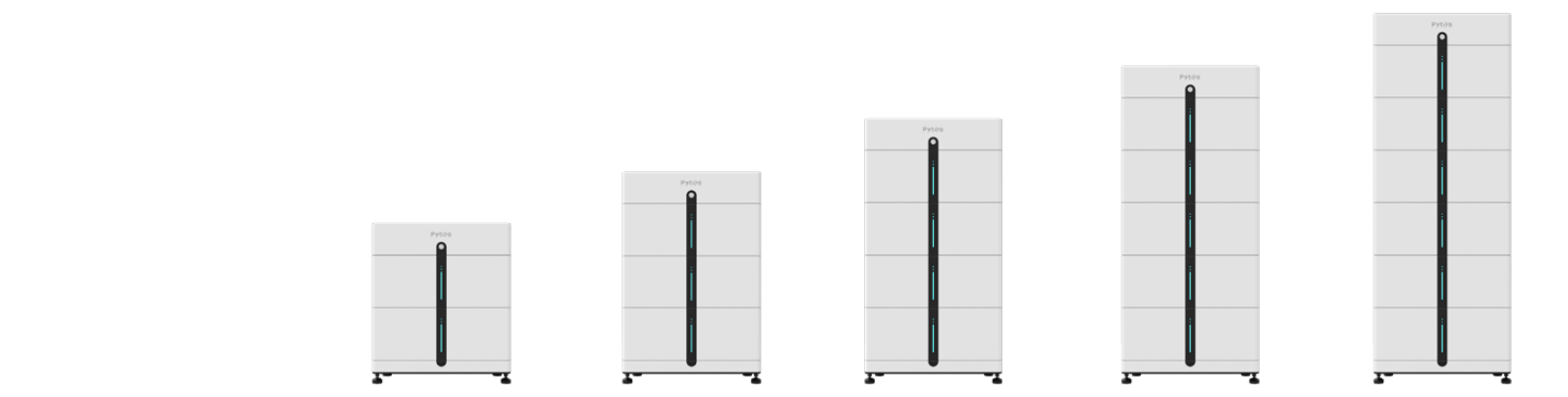

Scalable to 30.72 kWh (2 to 6 modules) per Stack
Up to 15.36kW Output Power (Surge: 15.36kW)
Modular Design, Easy Installation, Save Labor Costs
Heating Pad Integrated for Wider Operation Temperature
Remote Upgrading & Monitoring
Modernized Design, IP55 Rated Suitable for Indoor & Outdoor installation
Battery Management Unit:
| Cell Type | LFP |
| Nominal Energy | 5.12kWh |
| Nominal Voltage | 51.2V |
| Voltage Range | 44.8V~57.6V |
| Nominal Capacity | 100Ah |
| Recommended Discharging/Charging Current | 50A |
| Maximum Discharge/Charge Current | 75A |
| Peak Charge/Discharge Current | 100A |
| Certifications | UL1973, UN38.3, (TBD: UL9540, UL9540A) |
| Model | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|
| Cell Type | LFP | ||||
| Nominal Voltage | 51.2V | ||||
| Voltage Range | 44.8V~57.6V | ||||
| Nominal Capacity | 100Ah | ||||
| Nominal Energy | 10.24kWh | 15.36kWh | 20.48kWh | 25.6 kWh | 30.72kWh |
| Recommended Power | 5.12kW | 7.68KW | 10.24KW | 12.8KW | 15.36KW |
| Maximum Power | 7.68kW | 11.52kW | 15.36kW | 15.36kW | 15.36kW |
| Peak Power | 10.24kW | 15.36kW | 15.36kW | 15.36kW | 15.36kW |
| Dimensions (L*W*H) | 26.8*9.5*31.5 inch | 26.8*9.5*41.7 inch | 26.8*9.5*52.0 inch | 26.8*9.5*62.2 inch | 26.8*9.5*72.4 inch |
| Weight(lbs) | 285.5 | 411.2 | 536.8 | 662.5 | 788.2 |
| Communication | CAN, RS485 | ||||
| Cycle Life | ≥6000 cycles | ||||
| Protection level | IP55 | ||||
| Ambient Temperature | 14°F~131°F | ||||
| Storage Temperature | Within 1 month: -4°F~131°F 1~3 months: 32°F~95°F 4~12 months: 32°F~95°F | ||||
